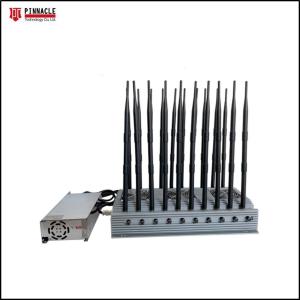

| | Product Technical Specification of PTC-D20 | | Working Channel | Output Port | Working Frequency | Output Power (+-1dBm) | | CH1 | 5G-600 | 617-698MHz | 10W | | CH2 | 4G-700 | 700-803MHz | 10W | | CH3 | 4G-800 | 790-826MHz | 10W | | CH4 | CDMA850 | 851-894MHz | 10W | | CH5 | GSM900 | 920-965MHz | 10W | | CH6 | DCS1800 | 1805-1880MHz | 10W | | CH7 | PCS1900 | 1920-2000MHz | 10W | | CH8 | 3G-2100 | 2110-2180MHz | 10W | | CH9 | 4G-2300 | 2300-2400MHz | 8W | | CH10 | 4G-2600 | 2500-2690MHz | 8W | | CH11 | 5G-3300/3500 | 3300-3600MHz | 4W | | CH12 | 5G-3600/3800 | 3600-3900MHZ | 4W | | CH13 | Wifi-2400 | 2400-2500MHz | 8W | | CH14 | Wifi-5800 | 5100-5900MHz | 4W | | CH15 | GPS-L1 | 1560-1620MHz | 10W | | CH16 | GPS-L2/L3/L4/L5 | 1170-1390MHz | 10W | | CH17 | VHF/LOJACK | 135-175MHz | 5W | | CH18 | RC-315 | 315MHz | 5W | | CH19 | RC-433 | 433-434MHz | 5W | | CH20 | RC-868 | 868MHz | 5W | | Working frequency: 20 frequencies for option | | Total output Power: 156W | | Power Supply: AC-110~240V to DC-24V | | Each band power can be adjustable by Knobs | | External Battery working time: about 60minutes | | Support 2-5meters with IR remote control to turn ON/OFF Jammer, from Max power to 0(off) | | Dimensions: 440x 250x 90 mm(not Include Antenna) | | N.W: appr.8kgs | | Omni Antenna: 380mm length | | Jamming range: 2-60 meters, Still depends on the strength signal in given area | | All frequency can be mixed flexible | | Each channel module can be switch on/off and work independently | | Warranty: 1 year from delivery date | Advantage: l All in One with 20 frequencies high power desktop designed for blocking all mobile signals 2G/3/4G/5G/+WIFI+GPS+Remote control signals. l Each band power can be adjustable by Knobs l Support IR remote control l Support external battery with 1hours operation for option l Each channel module With Knob switch design, for turning on/off any signal band freely and adjust the power l Aluminum housing is high safety and good heat dissipating l Built-in Smart cooling fans. l Easy operation and installation, non-stop working l High/Low temperature over protection, VSWR over protection l Block down link BCC channel only, no any interference with base stations l High frequency stability with PLL circuit design l Special modulating scheme improved jamming efficiency Application Prisons, military, government, Oil and Gas Storage Facilities and fields, Churches, Theatres, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.
|
